                        Product Details:


  |

| Product Name: | 18650 Lithium Battery Cell | Cycle Life: | 500 Times |
|---|---|---|---|
| Capacity: | 3500mAh | Weight: | 48g |
| Highlight: | Low Temperature Lithium Battery Lightweight,Low Temperature Lithium Battery 3500mAh,Lightweight 18650 Lithium Ion Battery Cells |
					||

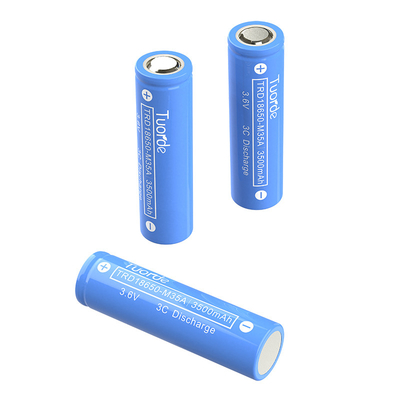

Low Temperature 3500mAh 18650 Lithium Battery Cell 18650 China Factory
Product Description:
18650 Lithium Battery Cell is a rechargeable cell battery that offers high-performance and high-output. It is designed with a size of 18mm X 65mm and a weight of 48g, that makes it lightweight and easy to carry. With a discharge temperature range between -40°C - 60°C and a storage temperature range between -5°C - 35°C, it provides a reliable and stable performance. Moreover, it has a cycle life of up to 500 times, ensuring the best performance and long-lasting use. This high-performance and high-output battery cell is perfect for a variety of devices.
Features:
1. Product Name: 18650 Lithium Battery Cell
2. Weight: 48g
3. Cycle Life: 500 Times
4. Max Charge Current: 1675mA
5. Discharge Temperature: -40°C - 60°C
6. Capacity: 3500mAh
7. Low temperature Battery Cell
8. Lithium Battery Cell

| No. | Item | Specifications |
| 1 | Model No. | TRD18650M35A |
| 2 | Typical Capacity | 3500mAh @0.2C Discharge |
| 3 | Min capacity | 3350mAh @0.2C |
| 4 | Nominal voltage | 3.6V |
| 5 | Standard Charge | CC/CV,0.2C,4.20V |
| 6 | Standard Discharge | CC,02C,2.5V |
| 7 | Cut-off charge Voltage | 4.20V±0.05V |
| 8 | Cut-off charge Current | 0.02C(At CVmode) |
| 9 | Cut-off discharge Voltage | 2.5V |
| 10 | Charging Time | 8.0hours(standard charge) |
| 11 | Quick Charge Current | 1675mA(0.5C) |
| 12 | Quick Discharge Current | 670mA(0.2C) |
| 13 | Max Discharge Current | 10000mA(3C) |
| 14 | Initial Impedance | ≤35mΩ |
| 15 | Weight | Approx:48.0g |
| 16 | Operating temperature | Charging:0℃~60℃ Discharging:-40℃~60℃  |

| 17 | Storage temperature | -5℃~35℃ |
| 18 | Storage Humidity | ≤75%RH |
| 19 | Standard environmental condition | Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA  |
