24V 25.6V 200Ah Lithium Iron Phosphate Battery with 5120Wh Energy and 100A Discharge

24V 25.6V 200Ah Lithium Iron Phosphate Battery with 5120Wh Energy and 100A Discharge
24V 25.6V 200Ah Lithium Iron Phosphate Battery with 5120Wh Energy and 100A Discharge

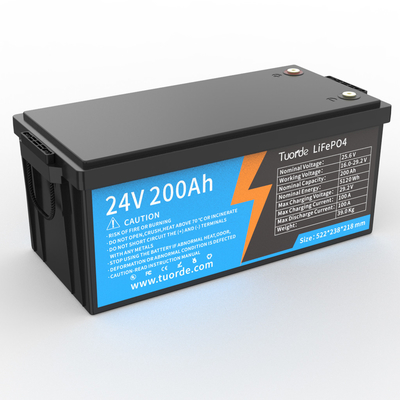

Large Image :  24V 25.6V 200Ah Lithium Iron Phosphate Battery with 5120Wh Energy and 100A Discharge

Product Details:
Place of Origin: China
Brand Name: Tuorde
Certification: CE/UN38.3/RoHS/MSDS
Model Number: TRD24200
Contact Now

24V 25.6V 200Ah Lithium Iron Phosphate Battery with 5120Wh Energy and 100A Discharge

Description
Nominal Voltage: 24V Nominal Capacity: 200Ah
Energy: 5120Wh Chemistry: Lithium Iron Phosphate (LiFePO4)
Max Discharge Current: 100A Water-proof Level: IP65
Discharge Temperature: -20°C-55°C Dimensions: 522 X 268 X220 Mm
Certifications: CE/UN38.8/MSDS/RoHS Warranty: 10 Years
Highlight:

200Ah Lithium Iron Phosphate Battery

,

5120Wh Lithium Iron Phosphate Battery

,

24V Lithium Iron Phosphate Battery



Model No. TRD24200
Nominal Voltage 25.6 V
Nominal Capacity 200Ah
Energy 5120Wh
Resistance ≤80 mΩ @ 50% SOC
Module Parallel or series(for option) Up to 4packs
Bluetooth function For option
Recommended Charge Current 40A
Maximum Charge Current 50A
Recommended Charge Voltage 29.2V
BMS Charge Cut-Off Voltage <29.2 V (3.65V/Cell)
Balancing Starting Voltage 3.4V/Cell
Maximum Continuous Discharge Current 100A
Peak Discharge Current 300 A (1s)
Recommended Low Voltage Disconnect 20 V (2.5V/Cell)
BMS Discharge Cut-Off Voltage 16V (2.0V/Cell)
Short Circuit Protection ＜350 μs
Dimension (L x W x H) 522 x 268 x220 mm
20. 6x10.55 x 8.66”
Approx. Weight 85.98lbs(39Kg)
Terminal Type M8 terminal
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material ABS+PC
Enclosure Protection IP65
Discharge Temperature -4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature -4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)

Tag:

Lithium deep cycle battery,

lifepo4 deep cycle battery,

Deep Cycle Storage Battery
