Shenzhen Tuorde Energy Co., Ltd. is a national high-tech enterprise integrating research and development, production, sales,investment, construction and operation, specializing in new energy application and solutions.
Our products include: lead-acid replacement lithium batteries, electric bicycle batteries, medical batteries, energy storage systems, mobile power stations, etc.
Tuorde passed ISO9001, ISO14001, ISO45001, SA8000 and other system certifications, and has more than 200 independent research and development patents. With a strong R & D team, advanced automation equipment, and continuous independent innovation,Tuorde becomes an outstanding lithium battery manufacturer in China.
Our products are widely used in the fields of communication, energy storage, new energy vehicles, electric bicycles, and key power supplies for industrial and commercial facilities. Tuorde has become a well-known brand enterprise in China's battery field.

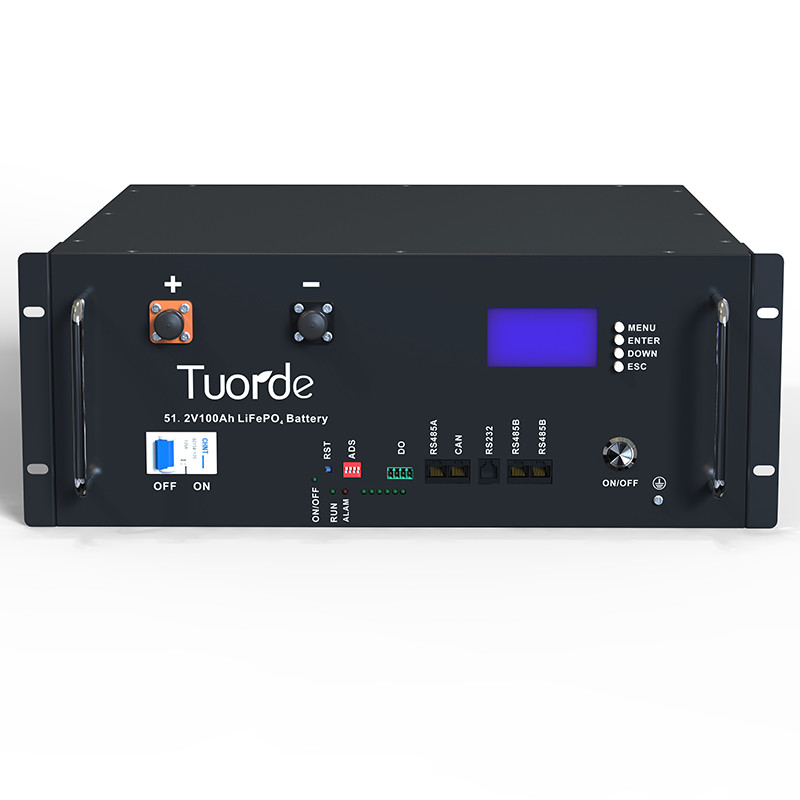

Product technical parameters:
| No. |
Item |
Spec |
| 1 |
Model No. |
TRD-LR48100 |
| 2 |
Nominal Voltage(V) |
48/51.2 |
| 3 |
Nominal Capacity(Ah) |
100 |
| 4 |
Energy(Wh) |
4800/5120 |
| 5 |
Dimension(mm) |
L442xW460xH177 |
| 6 |
Weight(Kg |
45/47 |
| 7 |
Discharge Cut-off Voltage(V) |
40.5(15S)/43.2(16S) |
| 8 |
Charge Cut-off Voltage(V) |
54.7(15S)/58.4(16S) |
| 9 |
Communication Port |
RS485,RS232 CAN |
| 10 |
Cell serial numbert(pcs) |
15S/16S |
| 11 |
Working Temperature/C |
-20°C-60°C |
| 12 |
Design life |
10+Years(25°C/77°F) |
| 13 |
Cycle Life |
>6000,25°C/77°F,80%DOD |
| 14 |
Certification |
CE/UN383 |
| 15 |
Maximum continuous charge current |
100A |
| 16 |
Maximum continuous discharge current |
100A |
Application:
This Lithium Iron Phosphate battery can be used in most applications to replace Lead Acid, GEL or AGM type batteries.
Suitable applications include:
• Solar energy Storage
• Telecom Base station
• Communication equipment
• Central office
• UPS
FEATURES :
•Long cycle life
6000 cycles @80% DOD
•Longer service life
10 years design lifespan
•Built in circuit protection
Battery Management System (BMS) protectction
•Better storage
Low self-discharge rate, less than 3% per month
•Quickly recharge
Max charge current 100A
•Wide working temperature
Suitable for use in a wider range of applications with ambient temperature of -20°C to 60°C.
•Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
