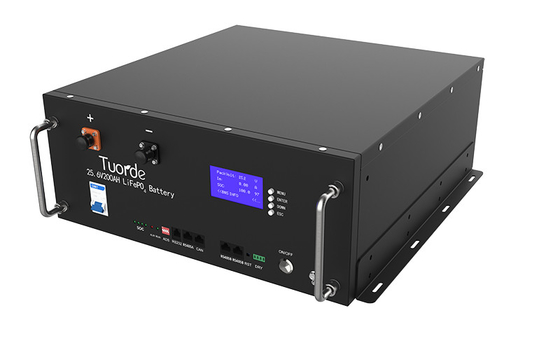

1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V

1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V
1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V

Large Image :  1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V

Product Details:
Place of Origin: China
Brand Name: Tuorde
Certification: UN38.8/MSDS/CE
Model Number: TRD-256200

1S 5KWh Base Station Battery with Peak Discharge Current 100A and Nominal Voltage 25.6V

Description
Nominal Voltage: 25.6 V Nominal Capacity: 200Ah
Energy: 5120Wh Recommended Charge Current: 30A
Maximum Continuous Discharge Current: 100A Peak Discharge Current: 110A(1S)
Dimension: L442 X W460 X H177 Mm Discharge Temperature: -20 ~ 60 ºC
Highlight:

25.6V Base Station Battery

,

5KWh Base Station Battery

,

1S Base Station Battery



Technical Parameters:



No. Item Spec
1 Model No. TRD-256200
2 Nominal Voltage 25.6V
3 Nominal Capacity 200Ah
4 Energy 5120Wh
5 Dimension L442xW460xH177 mm
6 Weight 49 Kg
7 BMS Discharge Cut-Off Voltage 22.4V
8 BMS Charge Cut-Off Voltage <29.2V
9 Communication Port CAN/RS232/RS485
10 Working Temperature -20°C ~ 60°C
11 Design life 10+Years(25°C/77°F)
12 Cycle Life 3000 cycles @80% DOD
13 Certification CE/UN38.3
14 Maximum continuous charge current 100A
15 Maximum continuous discharge current 100A
16 Peak discharge current 110 A (1s)


Applications:



Tuorde Base Station Battery is the perfect solution for a wide range of applications and scenarios, including:



  • Telecommunication base stations
  • Radio and TV broadcasting stations
  • Wireless communication stations
  • Emergency communication systems
  • Rural electrification projects
  • Off-grid power supply for remote areas

With its high capacity and stable performance, our battery can provide uninterrupted power supply for your base station, ensuring smooth communication and operation. Whether it's for emergency situations or daily use, Tuorde Base Station Battery is the reliable power source you can count on.
